About TOA WS-5325M Wireless Microphone
The

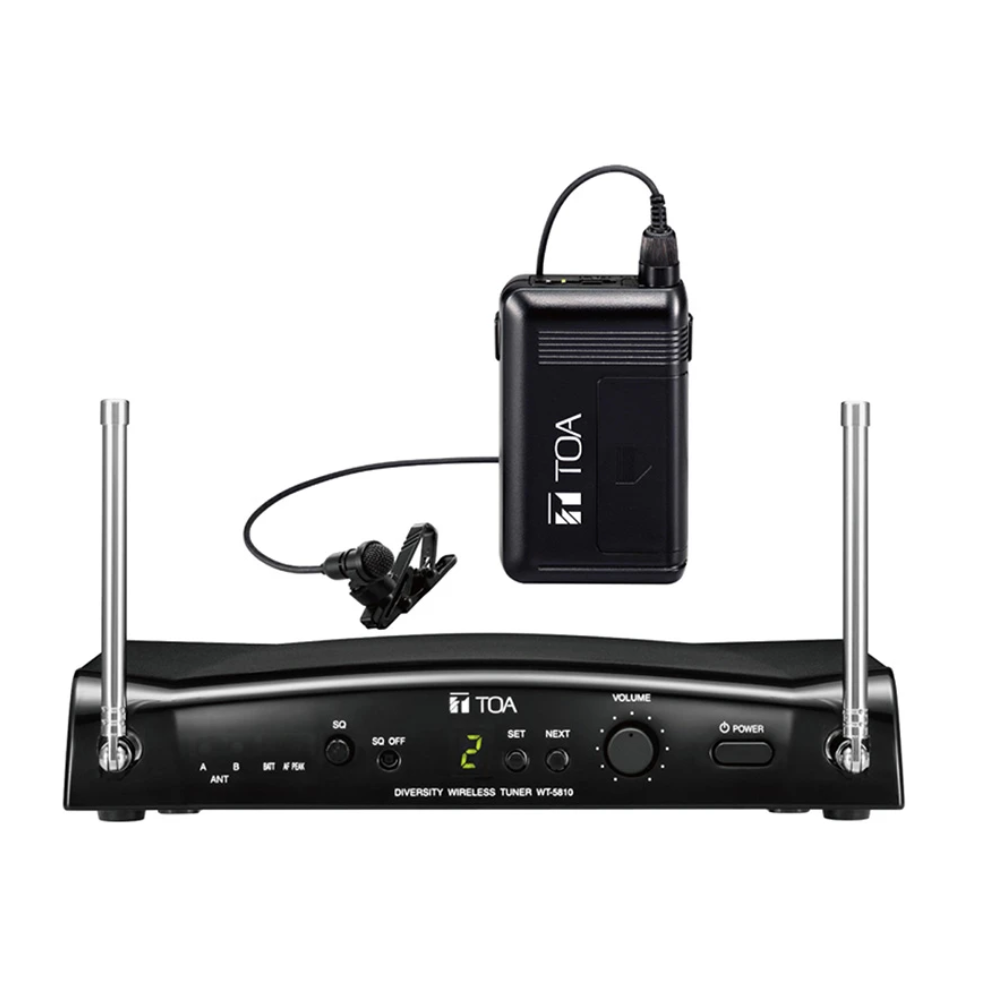

TOA WS-5325M Wireless Microphone is a professional UHF wireless microphone set designed for speech reinforcement, presentations, and public address applications. It includes the WM-5325 wireless body-pack transmitter, YP-M5310 omnidirectional lavalier microphone, and WT-5810 diversity wireless tuner. Its PLL-synthesized frequency system, selectable channels, and space-diversity reception support reliable wireless audio performance.
Specification
| Specification |
Details |
| Brand |
TOA |
| Model |
WS-5325M |
| Product Type |
UHF Wireless Microphone System |
| System Components |
WM-5325 Transmitter, YP-M5310 Lavalier Microphone, WT-5810 Tuner |
| Wireless System |
UHF |
| Modulation |
Frequency Modulation (FM) |
| Frequency Range |
Version Dependent: 576–865 MHz |
| Transmitter Channel Selection |
64 Channels (country and version dependent) |
| Tuner Channel Selection |
16 Channels |
| Oscillator |
PLL Synthesized |
| Tone Frequency |
32.768 kHz |
| RF Carrier Power |
Less than 50 mW (factory preset 10 mW ERP) |
| Maximum Deviation |
±40 kHz |
| Audio Frequency Response |
100 Hz – 15 kHz |
| Transmitter Maximum Input Level |
-14 dB to -29 dB (adjustable) |
| Transmitter Power Source |
1 × AA Alkaline Battery or Optional WB-2000 Rechargeable Battery |
| Battery Life |
Approx. 10 Hours with AA Alkaline; Approx. 13 Hours with WB-2000 |
| Transmitter Antenna |
Built-in |
| Transmitter Connector |
3.5 mm Mini Plug |
| Transmitter Dimensions |
62 × 102.5 × 23 mm |
| Transmitter Weight |
90 g (with battery) |
| Lavalier Microphone Model |
YP-M5310 |
| Lavalier Microphone Type |
Electret Condenser |
| Lavalier Directivity |
Omnidirectional |
| Lavalier Microphone Sensitivity |
-64 dB ±3 dB |
| Lavalier Frequency Response |
100 Hz – 15 kHz |
| Lavalier Maximum Input Level |
110 dB SPL |
| Lavalier Cable Length |
1.3 m |
| Tuner Model |
WT-5810 |
| Tuner Receiving System |
Double Superheterodyne |
| Tuner Diversity System |
Space Diversity |
| Tuner Receiving Frequency |
Version Dependent |
| Tuner Power Supply |
12V DC via Supplied AC Adapter |
| Tuner Power Consumption |
130 mA |
| Tuner Mixing Output |
MIC: -60 dBV, 600Ω Balanced; LINE: -20 dBV, 600Ω Unbalanced |
| Tuner Mixing Input |
-20 dBV, 10kΩ, Unbalanced |
| Tuner Antenna |
Whip Antenna |
| Tuner Receiving Sensitivity |
90 dB or More S/N (specified test condition) |
| Tuner Squelch Sensitivity |
16–40 dBμV, Variable |
| Tuner Squelch System |
Noise, Carrier, and Tone Squelch |
| Tuner Signal-to-Noise Ratio |
104 dB or More (A-weighted, unbalanced output) |
| Tuner Frequency Response |
100 Hz – 15 kHz (±3 dB) |
| Tuner Dimensions |
206 × 40.6 × 152.7 mm (excluding antenna) |
| Tuner Weight |
590 g |
| Operating Temperature |
-10°C to +50°C (except battery) |
| Operating Humidity |
30%–85% RH |
| Included Accessories |
AC Adapter, Screwdriver, Storage Case, Neck Strap |
TOA WS-5325M Wireless Microphone Price in Bangladesh
The price of the
TOA WS-5325M Wireless Microphone in Bangladesh may vary depending on stock availability and market conditions. Contact TOA PA System Bangladesh for the latest price, availability, and purchasing information.
User Experience with TOA WS-5325M Wireless Microphone
The
TOA WS-5325M Wireless Microphone provides hands-free speech communication through its lightweight body-pack transmitter and lavalier microphone. Users can move around while speaking without holding a microphone. The WT-5810 diversity tuner supports wireless signal reception, while its adjustable squelch system helps reduce unwanted radio-frequency noise.
Why Choose TOA WS-5325M Wireless Microphone?
The
TOA WS-5325M Wireless Microphone is a practical choice for presentations, lectures, conferences, and public speaking. Its combination of a body-pack transmitter, omnidirectional lavalier microphone, and diversity tuner provides a convenient wireless solution. PLL frequency synthesis and selectable channels offer flexibility for compatible wireless audio installations.
Key Features
- Complete UHF wireless microphone system.
- Includes WM-5325 body-pack transmitter.
- Supplied with YP-M5310 omnidirectional lavalier microphone.
- WT-5810 space-diversity wireless tuner.
- PLL-synthesized frequency operation.
- Up to 64 selectable transmitter channels, depending on regional version.
- 16 selectable tuner channels.
- Electret condenser lavalier microphone element.
- 100 Hz–15 kHz audio frequency response.
- Built-in transmitter antenna.
- Operates using one AA battery or optional rechargeable battery.
- Adjustable tuner squelch system.
- Balanced XLR microphone output and unbalanced line output.
Why Buy from TOA PA System Bangladesh?
- Genuine TOA product sourcing support.
- Competitive pricing in Bangladesh.
- Assistance in selecting suitable TOA PA system equipment.
- Support with product availability and technical information.
- Solutions for commercial, educational, and institutional audio projects.
- Assistance in selecting compatible speakers, amplifiers, microphones, and accessories.
- Support for individual, corporate, and institutional purchases.
Where Can TOA WS-5325M Wireless Microphone Be Used?
The
TOA WS-5325M Wireless Microphone is suitable for:
- Conference rooms and meeting halls.
- Schools, colleges, and universities.
- Lectures and classroom presentations.
- Corporate meetings and seminars.
- Religious institutions and community halls.
- Training centers and workshops.
- Public address and speech reinforcement systems.
- Hotels and commercial establishments.
What is the Price of the TOA WS-5325M Wireless Microphone in BD?
The latest price of the
TOA WS-5325M Wireless Microphone in Bangladesh depends on product availability and current market conditions. For the latest pricing information, stock details, and purchasing assistance, please contact
TOA PA System Bangladesh via WhatsApp or email.
