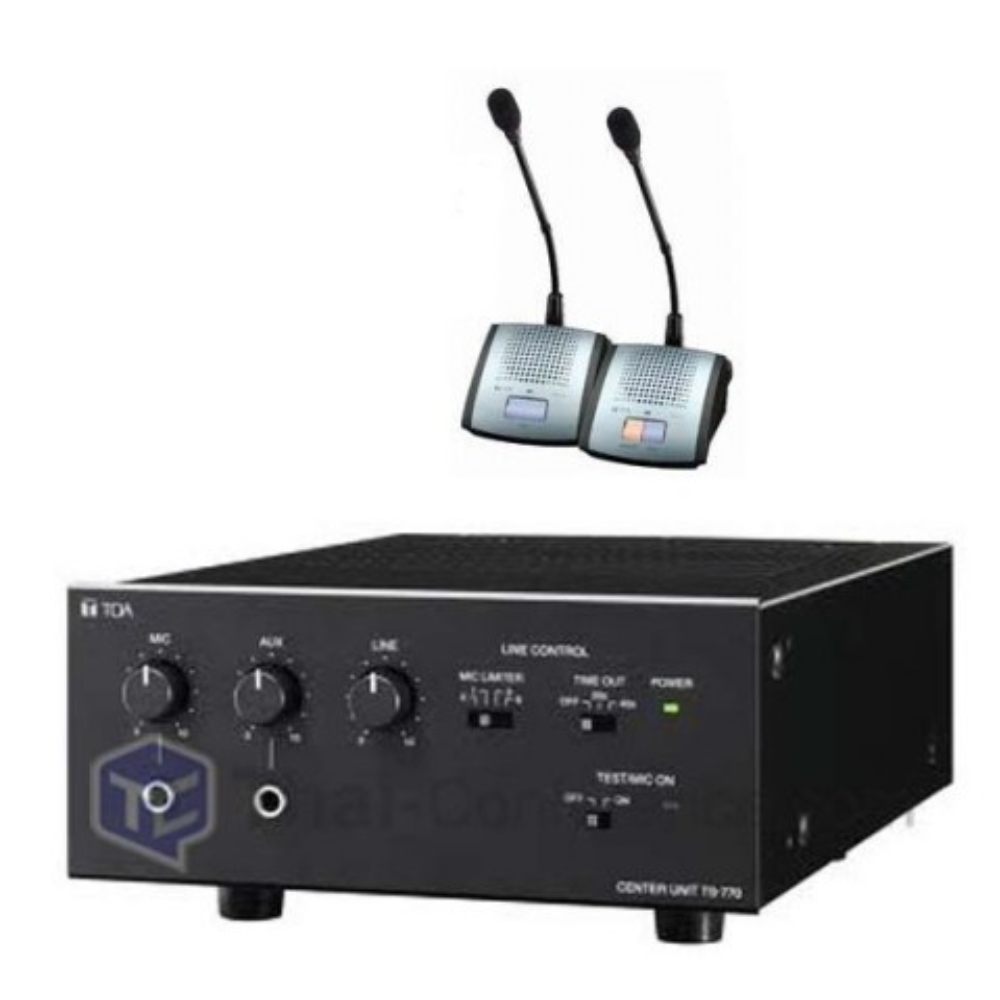

About TOA TS-770 Portable Conference System
The TOA TS-770 Portable Conference System is a wired conference system designed for meeting rooms, boardrooms, hotels, educational institutions, and government facilities. Its TS-770 central unit connects chairman and delegate units, supports microphone control, and provides recording and expansion connections. The system supports up to 70 conference units per central unit and can expand to 210 units using three central units.
Specification
| Specification | Details |
|---|---|
| Brand | TOA |
| Model | TS-770 |
| Product Type | Wired Conference System Central Unit |
| System Type | Wired Conference System |
| Power Supply | 230V AC, 50/60Hz |
| Power Consumption | Maximum 60W |
| Rated Output | 35V DC, 650mA × 2 |
| Microphone Input | -60dBV, 600Ω, unbalanced |
| AUX Input | -20dBV, 10kΩ, unbalanced |
| Recording Output | -20dBV, 10kΩ, unbalanced |
| Recording Connections | Phone jack and pin jack |
| Equalizer Connection | Input and output terminals |
| Expansion Input | Two pin-jack connections |
| Expansion Output | Two pin-jack connections |
| Priority Speech Chime | Supported |
| Automatic Microphone Off | Off / 20 seconds / 40 seconds |
| Simultaneous Delegate Speakers | Selectable: 1, 3, or 6 |
| Conference Units per Central Unit | Up to 70 |
| Maximum Units per Line | 35 |
| Maximum System Capacity | Up to 210 units with 3 central units |
| Compatible Conference Units | TS-771, TS-772, TS-775 |
| Operating Temperature | 0°C to +40°C |
| Operating Humidity | Below 90% RH, non-condensing |
| Front Panel Finish | Black hairline-finished aluminum |
| Case Finish | Black pre-coated steel |
| Dimensions | 210 × 107.1 × 316mm |
| Weight | 4kg |
| Included Accessory | 2m power cord |
| Optional Extension Cords | YR-770-2M, YR-770-10M |
TOA TS-770 Portable Conference System in BD
The TOA TS-770 Portable Conference System is suitable for professional meeting and discussion environments in Bangladesh. Its wired architecture, chairman priority function, recording connections, and expandable capacity make it useful for organizations that require structured conference communication. Availability may vary depending on current stock and market conditions.
User Experience of TOA TS-770 Portable Conference System
The TS-770 system is designed to make organized meetings easier to manage. Chairman and delegate units connect to the central unit, allowing participants to speak through dedicated conference microphones. The automatic microphone-off function helps manage inactive microphones, while the priority speech chime allows the chairman to take control when needed. Recording outputs also support capturing meeting discussions through compatible recording equipment.
Why Choose this TOA TS-770 Portable Conference System?
This conference system is suitable for organizations that need a dedicated wired discussion setup rather than a collection of independent microphones. Its central control, selectable simultaneous speaker limits, recording connections, and expansion capability support meetings of different sizes. With additional central units, a compatible system can accommodate up to 210 conference units.
Key Features
- Wired conference system architecture
- Central control for chairman and delegate units
- Supports up to 70 conference units per central unit
- Expandable to 210 units with three central units
- Chairman priority speech function with chime
- Automatic microphone-off settings
- Selectable simultaneous delegate speaker limits
- Microphone and AUX inputs
- Recording output connections
- Equalizer insertion terminals
- Expansion input and output connections
- Compact central unit design
- Compatible with TS-771, TS-772, and TS-775 units
Why Buy From TOA PA System Bangladesh?
TOA PA System Bangladesh offers TOA audio and conference solutions for professional communication environments. The TS-770 platform is designed for organized meetings, clear participant communication, and expandable conference installations.
- TOA conference system product range
- Suitable for corporate and institutional meetings
- Dedicated chairman and delegate unit support
- Recording and audio connection options
- Expandable conference system architecture
- Suitable for professional conference room installations
Where It Can Be Used?
- Corporate boardrooms
- Government meeting rooms
- Conference halls
- Educational institutions
- Hotels and hospitality facilities
- Training rooms
- Committee and council meetings
- Office meeting spaces
- Multipurpose halls
- Institutional discussion rooms
What is the Price of Toa TS-770 Portable Conference System in BD?
The latest price of Toa TS-770 Portable Conference System in Bangladesh depends on product availability and current market conditions. For the latest pricing information, stock details, and purchasing assistance, please contact TOA PA System Bangladesh via WhatsApp or email.
