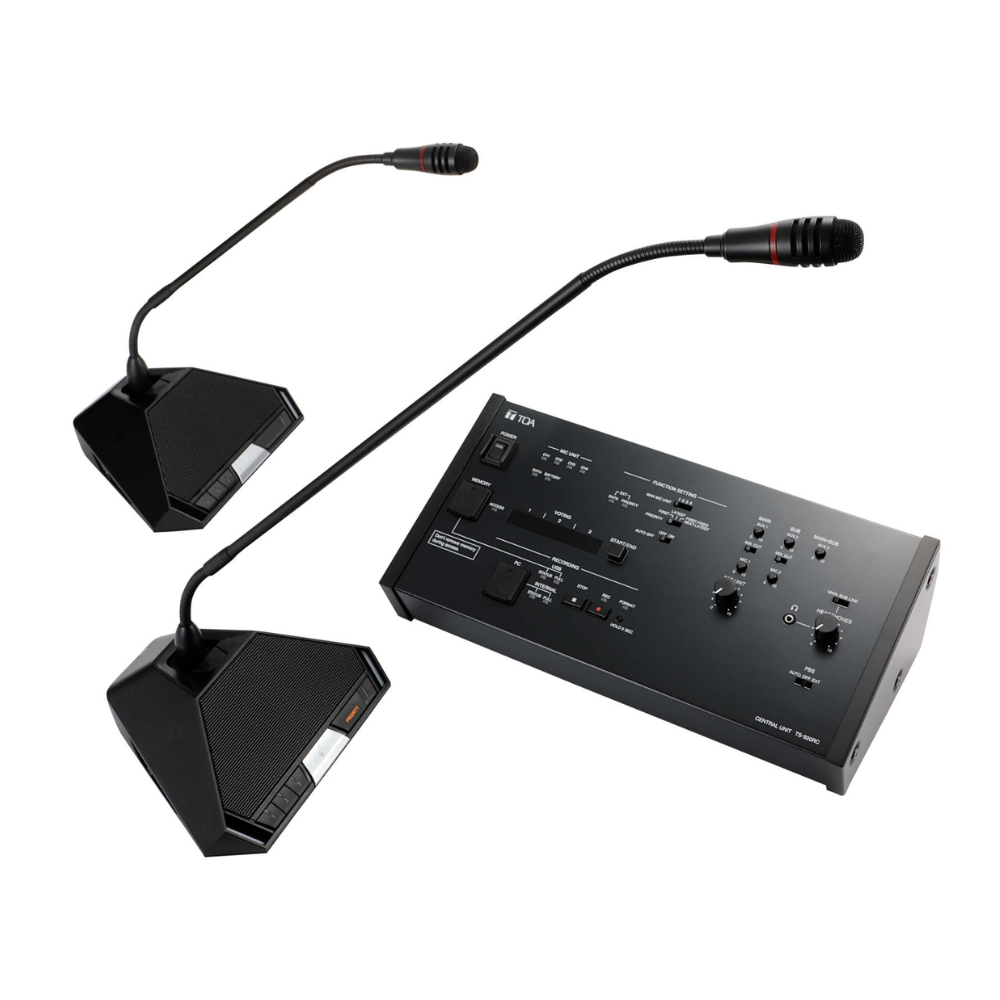

About TOA TS-920RC Central Unit Infrared Conference System
The TOA TS-920RC Central Unit Infrared Conference System is designed to manage wireless infrared chairman and delegate units in professional meeting environments. It supports up to 192 conference units, offers built-in feedback suppression, and records conference discussions to USB storage or internal memory. Voting functions, PC control, and multiple audio connections make it suitable for organized conferences and institutional meetings.
Specification
| Specification | Details |
|---|---|
| Brand | TOA |
| Model | TS-920RC |
| Product Type | Infrared Conference System Central Unit |
| System Type | Wireless Infrared Conference System |
| Power Source | 100–240V AC, 50/60Hz via supplied AC adapter |
| Power Consumption | 72W |
| Maximum Current Consumption | 3A DC |
| Compatible IR Transmitter/Receiver | TS-905, TS-907 |
| Compatible Conference Units | TS-901, TS-902, TS-911, TS-912, TS-801, TS-802, subject to system configuration |
| Maximum Conference Unit Capacity | Up to 192 units |
| Direct IR Transmitter/Receiver Connections | Up to 4 units |
| Expansion with Distributor | Up to 16 TS-905 units or up to 12 TS-907 units, subject to configuration |
| IR Connection Interface | BNC jacks |
| Microphone Inputs | 2 |
| AUX Inputs | 3 |
| Base Language Input | Supported |
| Translation Language Input | Supported |
| Line Output | -10dB, 10kΩ, unbalanced |
| Recording Output | RCA pin jack |
| Headphone Output | 3.5mm mini jack |
| Equalizer Input/Output | RCA pin jacks |
| Recording Format | MP3, monaural |
| Recording Storage | Internal memory or USB flash drive |
| USB Recording Port | USB-A |
| PC Connection | USB Mini-B or D-sub 9-pin, selectable |
| Feedback Suppression | Built-in FBS |
| Open Microphone Selection | 1, 2, 3, or 4 |
| Automatic Microphone-Off | Timeout ON/OFF |
| Speech Priority | First-in-first-out, last-in-first-out, or fixed priority for first unit |
| Voting Function | Supported |
| Installation Confirmation | Supported |
| Rack Mounting | Optional MB-TS920 bracket |
| Operating Temperature | 0°C to +40°C |
| Operating Humidity | 90% RH or less, non-condensing |
| Finish | Black, semi-gloss surface-treated steel plate |
| Dimensions | 361 × 122.6 × 179.8mm |
| Weight | 2.8kg |
| Included Accessory | AC adapter and power cord |
TOA TS-920RC Central Unit Infrared Conference System in BD
The TOA TS-920RC Central Unit Infrared Conference System is suitable for professional conference installations in Bangladesh, including corporate boardrooms, government meeting rooms, conference halls, and institutional facilities. Its infrared wireless communication, recording capability, feedback suppression, and support for up to 192 conference units make it suitable for larger meeting environments. Availability may vary depending on current stock and market conditions.
User Experience of TOA TS-920RC Central Unit Infrared Conference System
The TS-920RC central unit manages communication between compatible infrared transmitter/receiver equipment and chairman or delegate units. Its microphone priority settings help maintain orderly discussions, while the built-in feedback suppressor helps reduce unwanted acoustic feedback. The MP3 recording function allows conference audio to be saved to internal memory or compatible USB storage, making it easier to retain meeting records.
Why Choose this TOA TS-920RC Central Unit Infrared Conference System?
This central unit is a practical choice for organizations that need a flexible wireless infrared conference solution. It supports a large number of conference units, provides separate base-language and translation-language audio inputs, and includes voting and installation confirmation functions. PC control and recording features further support professional conference management.
Key Features
- Wireless infrared conference system control
- Supports up to 192 compatible conference units
- Compatible with TS-905 and TS-907 infrared transmitter/receivers
- Built-in Feedback Suppressor (FBS)
- MP3 recording to USB storage or internal memory
- Voting function with result indicators
- Installation confirmation function
- Separate base-language and translation-language inputs
- Two microphone inputs and three AUX inputs
- Recording output and headphone monitoring
- Selectable limit for simultaneous open microphones
- Automatic microphone-off settings
- Configurable speech-priority modes
- PC external control
- Optional rack mounting with MB-TS920
Why Buy From TOA PA System Bangladesh?
TOA PA System Bangladesh offers professional audio and conference solutions for corporate, commercial, and institutional environments. The TS-920RC provides centralized management for compatible infrared conference units, with recording, voting, and feedback suppression features for organized meetings.
- TOA professional conference system product range
- Suitable for corporate and institutional installations
- Wireless infrared conference architecture
- Recording and external audio connection options
- Support for large conference systems
- Suitable for professional meeting room projects
Where It Can Be Used?
- Corporate boardrooms
- Government meeting rooms
- Conference halls
- Parliament and council chambers
- Hotels and multipurpose halls
- Educational institutions
- Training and seminar rooms
- Institutional meeting facilities
- Large committee rooms
- Meetings requiring language interpretation
What is the Price of Toa TS-920RC Central Unit Infrared Conference System in BD?
The latest price of Toa TS-920RC Central Unit Infrared Conference System in Bangladesh depends on product availability and current market conditions. For the latest pricing information, stock details, and purchasing assistance, please contact TOA PA System Bangladesh via WhatsApp or email.
